Thin heat-resistant double-sided tapes series

Thin heat-resistant double-sided tapes series
We have a lineup of three double-sided adhesive tapes with a thin-film design and excellent heat resistance: Double-Face ™ R260, Double-Face ™ R310KS-2, and Double-Face ™ R380. Each is designed to be less than 50 μm in thickness, and can be used in various applications that require miniaturization and heat resistance of the entire product.

Characteristics

  • Double-Face ™ R260
    This is a double-sided tapes made by applying high-performance strong pressure sensitive adhesives to a thin special core material. It exhibits excellent performance for bonding various plastics, synthetic rubbers, metals, etc.

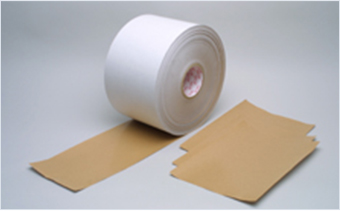

  • Double-Face ™ R310KS-2
    In addition to demonstrating stable performance over a wide temperature range, the material design takes workability into account to reduce the pressure sensitive adhesives threading phenomenon and reduce the problem of glue return and glue skipping after processing. It can be used as a tape for fixing FPCs and electronic components.
  • Double-Face ™ R380 Series
    It is a substrate-less tape and comes in two types of thicknesses: 30 μm and 50 μm. It is an adhesive tape with excellent heat resistance and maintains adhesive strength even in high-temperature environments, while reducing the misalignment of holding power. It is suitable for bonding heat-generating materials and heat dissipators, and can contribute to the miniaturization of products.

Product Data

Product name Thickness (μm) Base material Effective width (mm) Adhesion  (N/25mm) Features Technical AIS
Double-Face ™ R260 50 Special core material 1040 19.8 Excellent adhesion to various rubber materials
Excellent heat resistance and water-based
R260
Double-Face ™ R310KS-2 50 Special core material 1040 19.6 For fixing FPC, excellent workability and good heat resistance. R310KS-2
Double-Face ™ R380-30 30 No base material 1050 15.7 For fixing metal and plastic. Good adhesion in high temperature environments R380-30
Double-Face ™ R380-50 50 No base material 1050 16 For fixing metal and plastic. Good adhesion in high temperature environments R380-50
  • The above values are measured values and are not guaranteed values.
  • Please contact our representative regarding your desired tape width and length.

Notes in Use

  1. Clean the adherend (Remove dust, any other foreign particles, water, and oil.)
  2. Make sure that the adherend is free of burrs and warpage.
  3. Apply the tape to the adherend at a temperature of around 20 degrees centigrade wherever possible.
  4. After applying the tape, press firmly.
  5. Be sure to conduct a test before using the tape to check that the tape is suited for the application.
  • These tapes are for industrial use only. Do not use them for the following applications.
    ・Applications that involve or may involve the direct attachment of the tape to the skin.
    ・Applications that involve the direct attachment of the tape to food.

Notes on strage

  1. Store the product in a room away from sunlight. Keep it away from high temperatures and humidity. (The desirable temperature is 5 to 40 degrees centigrade, and the desirable humidity is 60% or lower.)
  2. Avoid placing the product directly on the ground or floor. Place it on a table that allows air to pass through.
  3. When storing tapes in a stack, be sure to insert a removable material, such as inserting paper, between the tapes and stack them vertically.
