Environmentally friendly pressure sensitive adhesives with biodegradability of over 90%

環境対応イメージ
This is an environmentally friendly pressure sensitive adhesives that biodegrades in a compost environment. There are two lineups: a 2-component strong adhesive type with a biodegradability of over 90%, and a 1-component low tack self-adhesive type that adheres strongly between adhesive surfaces.

Do you have any worries like this?

こんなお悩みありませんか
・Customers have requested biodegradation, and along with the base material, I want to make completely biodegradable tapes and labels.
・I want to make binding tape, but I can't use regular pressure sensitive adhesives. It sticks to everything and is difficult to work with.
・ pressure sensitive adhesives currently under consideration does not have sufficient biodegradability.

Our biodegradable pressure sensitive adhesives can help

What is biodegradable pressure sensitive adhesives?

  • By using biodegradable raw materials as part of pressure sensitive adhesives raw materials, pressure sensitive adhesives has achieved biodegradability, which was difficult to achieve with conventional products.
  • Our products have been confirmed to have high biodegradability in composting (high temperature and humidity) environments.
    *ISO 14855-1 (JIS K6953-1) testing is conducted by an external organization.
  • By using it in conjunction with biodegradable base materials, it is possible to achieve biodegradation of the entire product.
従来の粘着剤を使用した場合のイメージ
生分解性粘着剤を使用した場合の生分解イメージ

Click here for a detailed explanation of biodegradable pressure sensitive adhesives

What is bioplastic?

Our product position

  • Various biodegradation tests have been conducted, and we have confirmed that our biodegradable pressure sensitive adhesives has "compost decomposition" properties.

Various biodegradation tests

  • Compost decomposition: Decomposes in a high temperature and humidity environment ISO 14855-1 (JIS K6953-1) → Our product
  • Soil decomposition: decomposition in soil
  • Aqueous decomposition: decomposes under freshwater conditions
  • Marine biodegradation: decomposes in seawater

1-liquid, low tack, self-adhesive type

  • Biodegradation rate in a compost environment is 90% or more (theoretical value)
  • Very low tack (less sticky adhesive surface) and difficult to stick to adherends
  • Strong adhesion between adhesive surfaces possible (self-adhesive performance)
  • One-liquid specification, no curing agent or aging required
Development product
Biodegradability 90% or more (theoretical value)
Peeling strength [N/25mm] To SS Immediately after pasting 5.3
24 hours after pasting 16.3
Face to face coating side Immediately after pasting 12.0
24 hours after pasting 12.5
Shear [mm] SUS 40℃-1kg-70,000 seconds 5.0
Ball tack [#] 23℃ less than 2
Biomass % (dry weight) [%] 60

Base material: 50μmPET Coating amount 25g/m2 (Dry)

Video of adhesion strength measurement immediately after pasting

2-component strong adhesive type

  • in a compost environment Confirmed biodegradability of 90% or more
    Improved biodegradability from 60% of previously developed products!
  • Two-component strong viscosity type that uses a hardening agent.

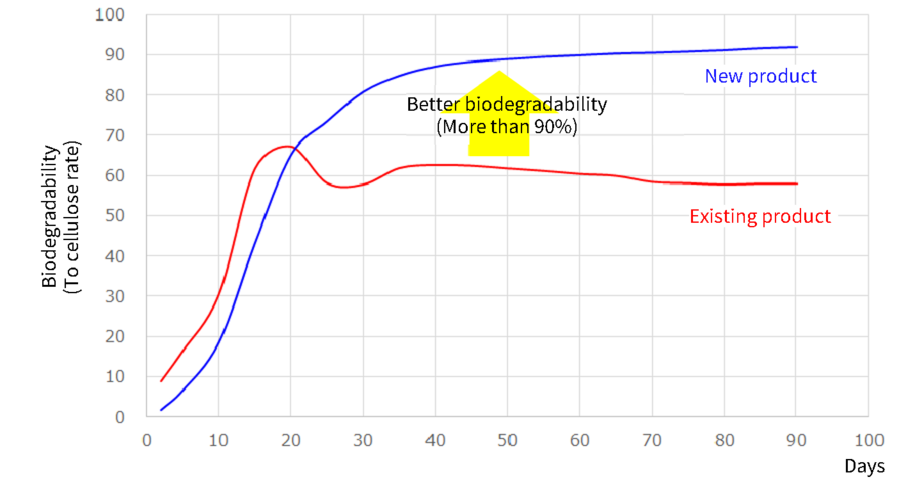

Biodegradability evaluation test JIS K6953-1:2011
Biodegradability evaluation test JIS K6953-1:2011
  • Sample preparation conditions: Create a non-carry adhesive sheet and cut it.
  • Aerobic composting conditions: Exposure to organic components (compost) in a high temperature environment of 58℃
Previously developed product Newly developed product
Biodegradability 60% 90%
Peeling strength [N/25mm] 24 hours after SUS pasting 15.0 16.0
Shear [mm] SUS 70℃-1kg-70,000 seconds N.C. N.C.
Ball tack [#] 8 7
Biomass % (dry weight) [%] 45 35

*Base material: 50μmPET Coating amount 25g/m2 (Dry) NC: Non-creep

Examples of expected uses for biodegradable pressure sensitive adhesives

農業用テープイメージ
Fields used within the natural environment
・Agricultural and forestry materials
(Multi-film fixing tape, seed pot labels, binding tape, etc.)
・Civil engineering and construction materials
・Outdoor leisure equipment (golf, mountain climbing, camping)
食品容器包装資材、日用品・雑貨類イメージ
Areas useful for composting
・Food containers and packaging materials
・Hygiene products
・Daily necessities and miscellaneous goods

*There are no restrictions on the uses of pressure sensitive adhesives.
We would like to exchange opinions with anyone who is considering materials in combination with biodegradable adhesives in various fields.
