Oil- and water-resistant coatings for paper FILLHARMO ™

It is a coating agent that imparts water-based and oil resistance to paper substrates. It is an environmentally friendly product that uses materials listed in the Food Sanitation Act and the FDA's positive list, can be applied to food contact applications, and does not use fluorinated materials or solvents.

Features of FILLHARMO® ™

Adds water-based and oil resistance to paper substrates

  • It can impart water-based and oil resistance to paper substrates, making it ideal for packaging applications for foods containing oil and moisture.
  • Heat-resistant grade products can also be heated by microwave ovens.
  • Some products have heat sealability, and heat fusion processing similar to that of plastic packaging is possible.
Image of use of FILLHARMO®™︎
Image of use of FILLHARMO®™︎
Oil Resistance and water-based Resistance Test

Oil resistance test when heating a microwave oven

Uses ingredients on the Food Sanitation Act and FDA positive lists

This product uses raw materials listed in the Food Sanitation Act, Food Appliances, Containers, and Packaging Positive List and the U.S. FDA.
The grace period for the Food Sanitation Law Positive List System ended on May 31, 2025, and after that, you will be required to use ingredients on the positive list on surfaces that come into contact with food, but you can use FILLHARMO ™ with confidence.

No fluorinated materials or solvents

We do not use fluorinated materials, and we can also comply with fluorine-free compliance with PFAS regulations.
In addition, water is used for ingredients other than resins and additives, and it is a non-hazardous material that does not contain solvents.

Applications

It is ideal for food containers and wrapping paper. In addition, it is also used for non-food applications such as paper bags.

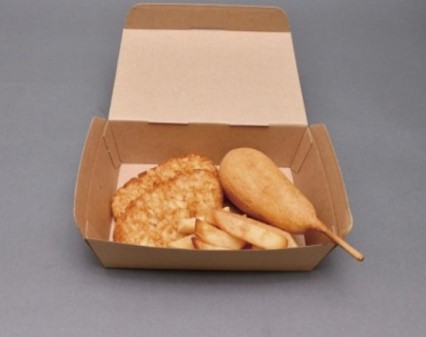

FILLHARMO®︎用途例 紙器
FILLHARMO®︎用途例 食品包装紙
FILLHARMO®︎用途例 紙袋

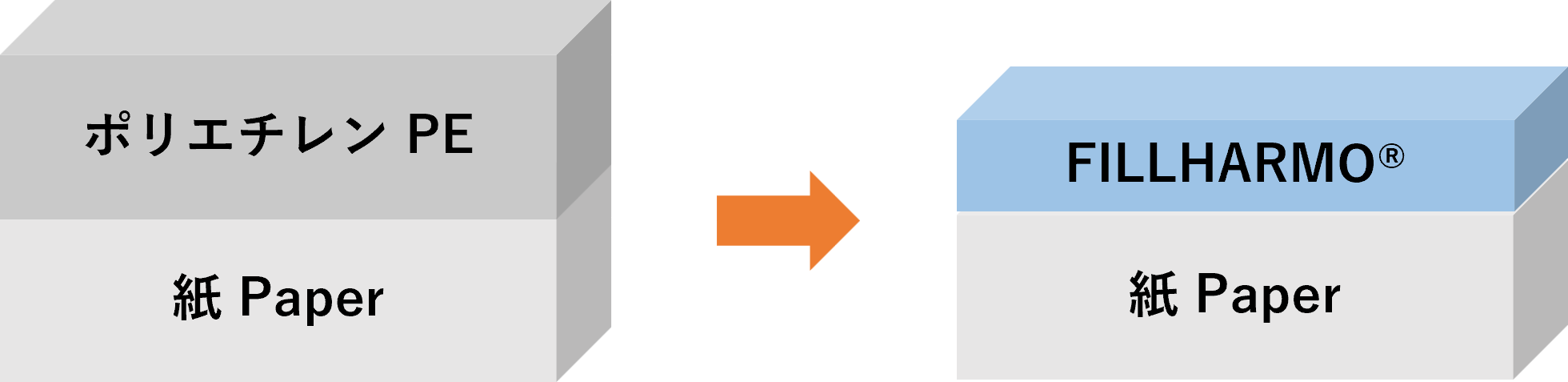

Example of configuration at the time of use (replacement from paper + PE configuration)

By changing the composition from PE laminated paper (solid weight 8 g/㎡) to FILLHARMO ™ ︎ coated paper (solid weight 3 g/㎡), the amount of plastic used can be reduced.

Example of configuration (replacement from paper + PE configuration)
Example of configuration (replacement from paper + PE configuration)

Product Lineup

Product name Features Oil and water-based Heat resistance

Heat fusion

(Heat sealability)

Amendment of the Food Sanitation Law PL

(November 30, 2023

Promulgated)

FDA

§176.170

composition

GS500

Standard goods

Excellent peelability

listing

Listing (conditional)

Styrene Acrylic

GS411

Medme (primer) effect

The oil resistance of the fold part does not deteriorate easily.

listing

Listing (conditional)

Styrene Acrylic

Wax-free products

GS420

Achieve both heat adhesion and high hardness

listing

Listing (conditional)

Styrene Acrylic

GS600

Ultra-high hardness

Excellent heat resistance

listing

Listing (conditional)

Styrene Acrylic

NS215

No FDA restrictions

Excellent heat adhesion

listing

listing

All-acrylic

NS260

No FDA restrictions

Excellent peelability

listing

listing

All-acrylic

Inquiries

TOYOCHEM CO., LTD. Packaging and Industrial Materials Sales Division Address Sales Department

TOYOCHEM CO., LTD.
