Gravure cylinder for packaging

Packaging requires the reproducibility of all of these features, including vivid color tones, expressive gradations, and minute text and lines. In order to meet these demands, TOYO FPP performs a variety of processes, including checking the layout and text quality of submitted data, advanced image color correction, and the use of engraving and lasers to match the design, to create high-quality packages. Contributing to
Furthermore, we have established a consistent quality control system for all processes, including verification using a digital plate inspection machine, high-precision grinding of plate cylinders using a polish master, and automatic pinhole extraction on the plate surface using an image inspection machine.

Gravure cylinder for adhesives

We provide highly accurate dry laminated cylinders using ultra-high resolution lasers equipped with the latest technology and control in μm units.
It has excellent repeatability and allows for stable coating amounts.
By collaborating with Toyo Toyo-Morton, a group company laminating adhesives, we can respond to your detailed needs in terms of optimal application amount and plate-making conditions.

Characteristics

• Plate making design according to processing machine, processing speed, and target coating amount
• Achieved cost reduction by stabilizing coating amount and improving production efficiency.

• Improved appearance quality with distortion-free honeycomb-shaped cells developed by our company
• Can handle patterns that were not possible with conventional embossing plates.

Enlarged photo of the printing plate

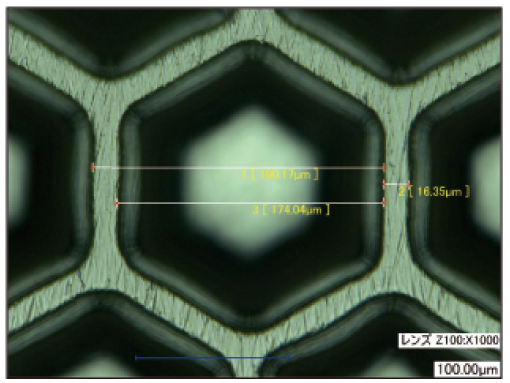

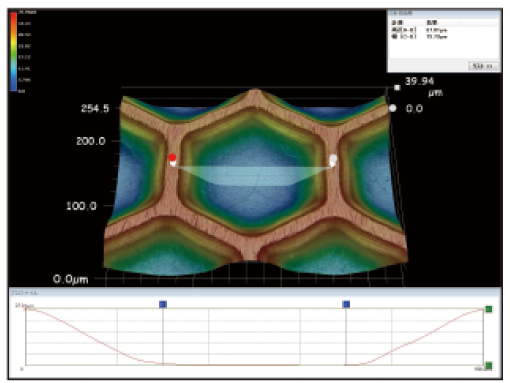

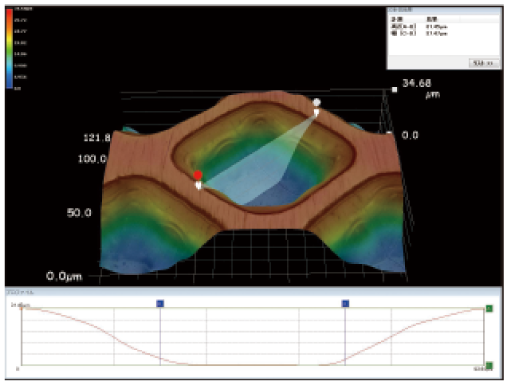

135L/inch 40μ honeycomb

Gravure cylinder for coating agent

Our gravure rolls are also suitable for coating agent applications.
Due to corrosion plate making, the bottom of the cell is smooth, making it easy to remove the coating liquid and cleaning it, which also leads to cost reductions due to the longer cycle of plate making.
Please feel free to contact us with any questions you may have, such as wanting to try gravure coating with a coating liquid for which we have no experience, stabilizing coatings, or adjusting the amount of coating to the last possible limit.
We offer various cell shapes such as honeycomb, lattice, and diagonal lines.

Characteristics

• Ideal for high viscosity coating processing
• Plate making design tailored to coating liquids such as hot melts, pressure sensitive adhesives, heat sealing agent, etc.
• Free plate design allows us to propose plate specifications that were previously impossible.
• Can also accommodate customer-specified plate-making designs

• Corresponds to the desired cell volume using our unique cell volume calculation

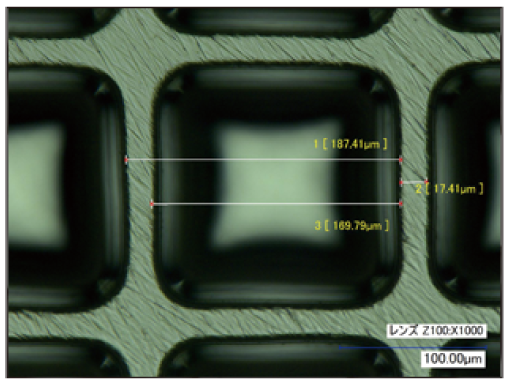

Enlarged photo of the printing plate

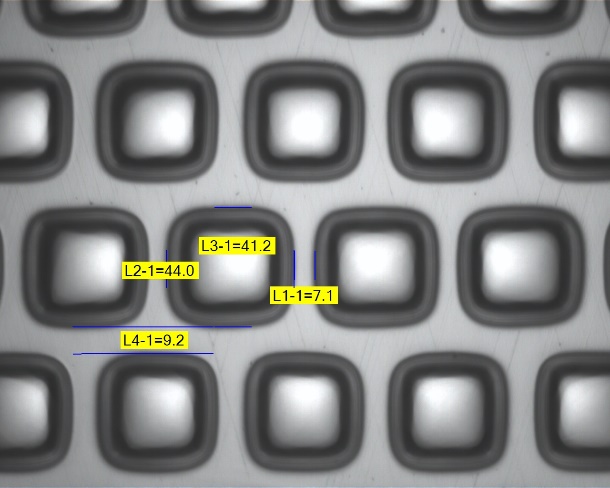

135L/inch 35μ grid

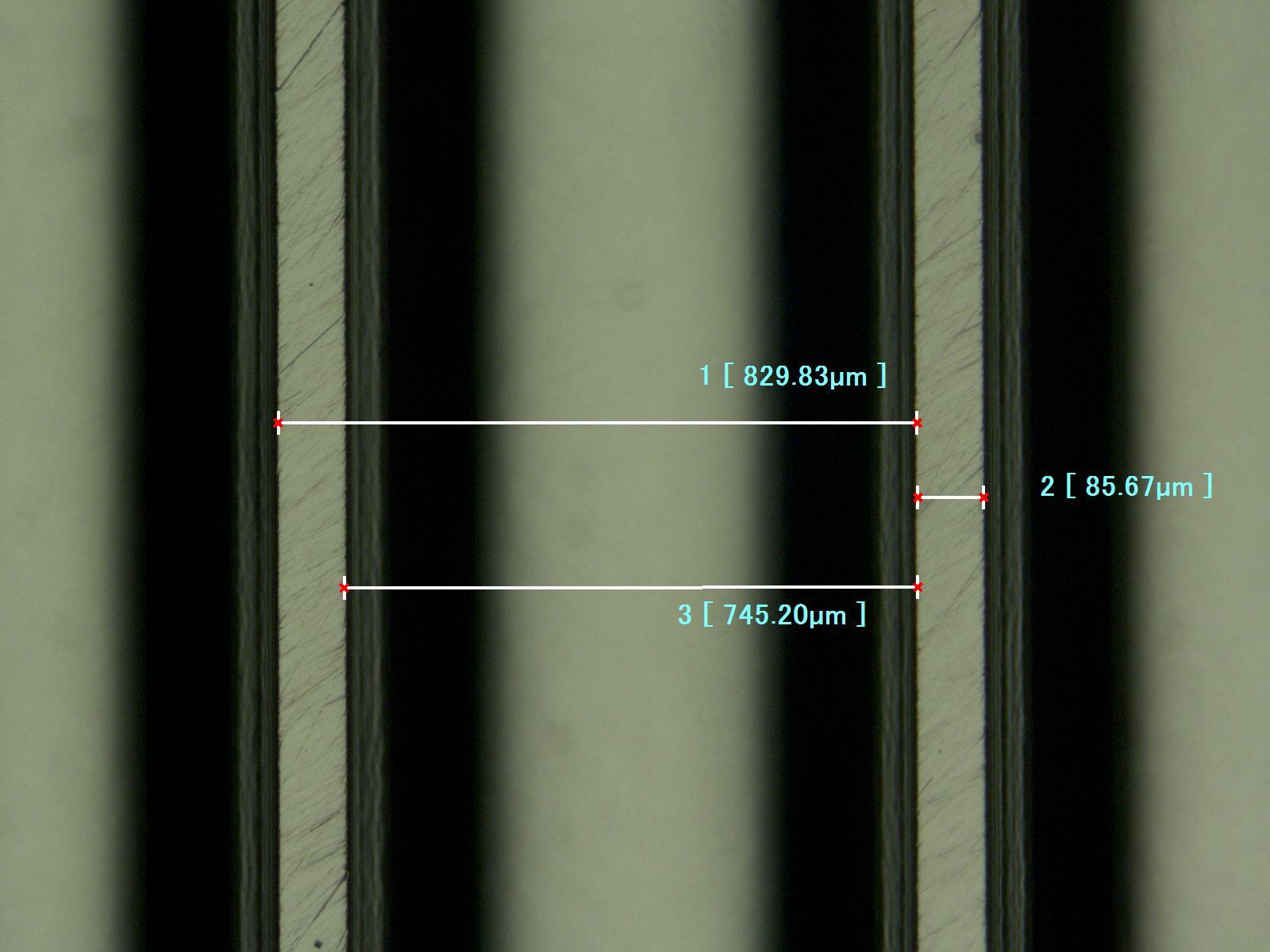

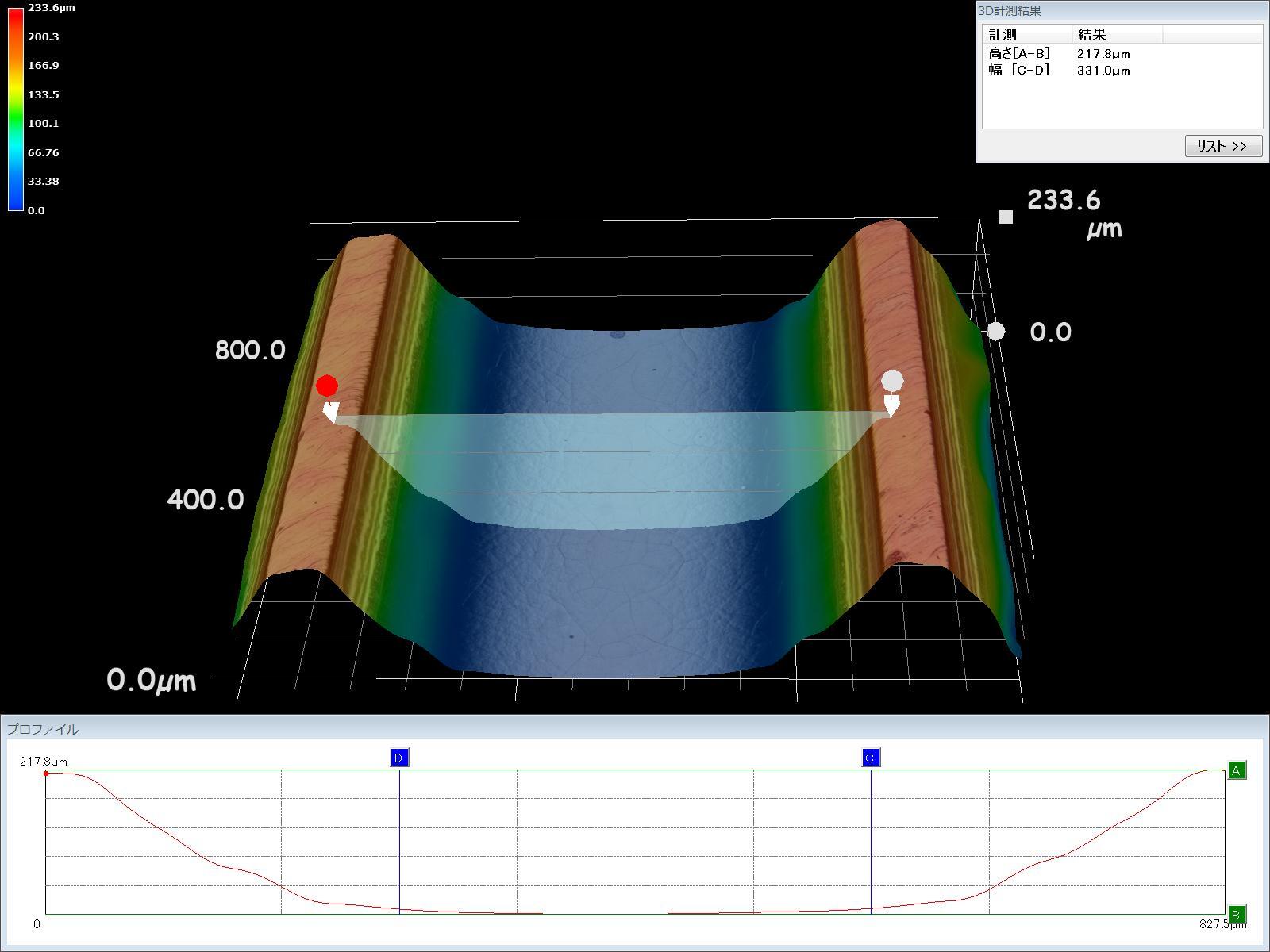

30L/inch 220μ diagonal line

Gravure cylinder for printed electronics

With a scanning resolution of 25,400 dpi using an ultra-high precision laser engraving system, it is possible to reproduce everything from ultra-fine characters to fine lines.
We realize printed electronics, security-related, commercial printing background pattern plates, etc.

Characteristics

• Free cell design
• Various cell combinations are also possible
• Control the target depth from shallow to deep

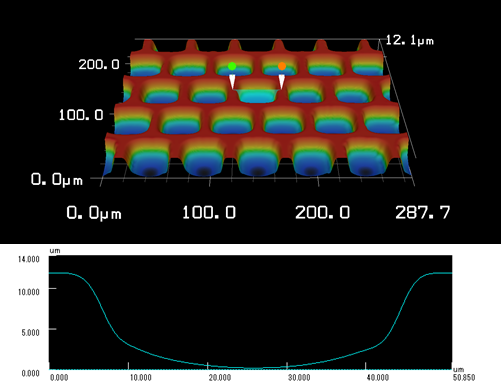

Enlarged photo of the printing plate

Striped 500L/inch

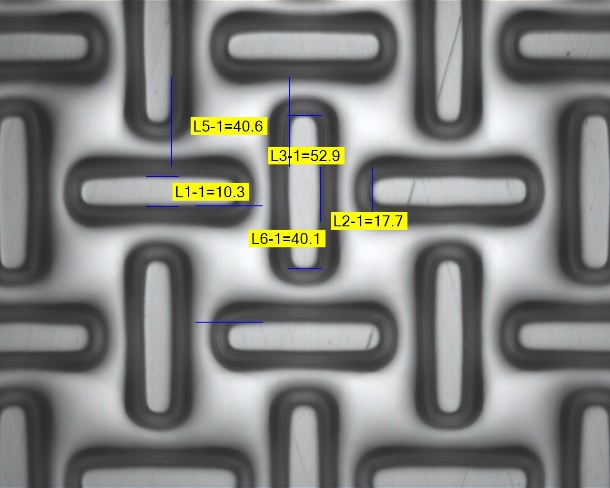

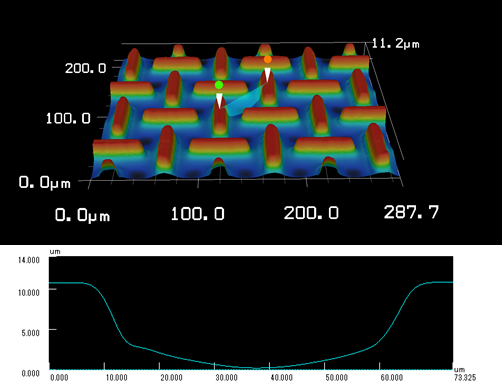

Houndstooth 500L/inch

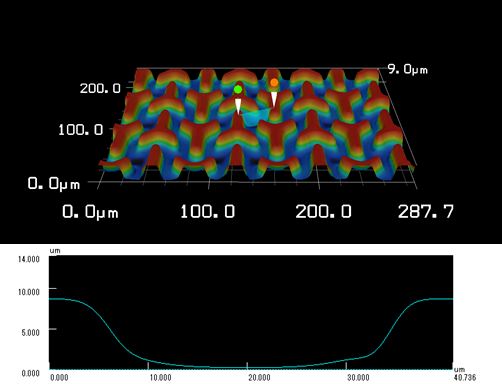

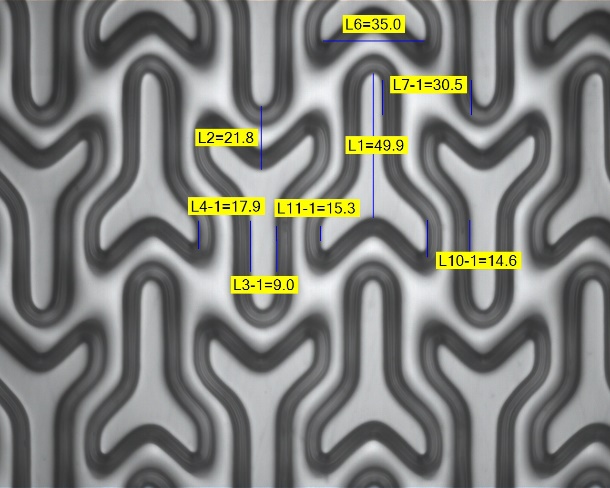

Special cell Y

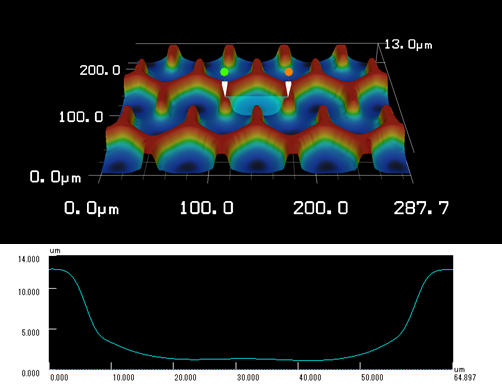

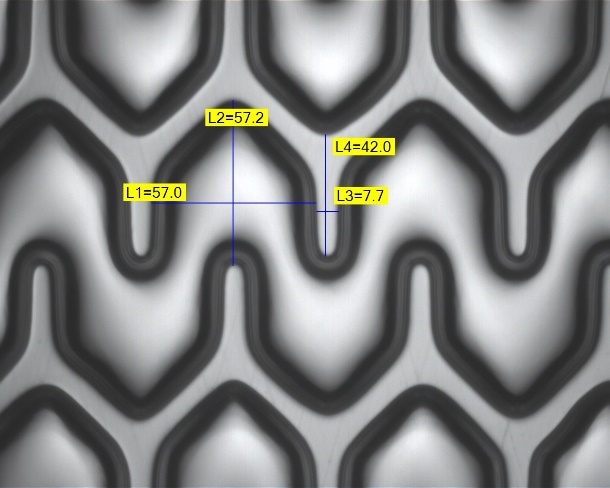

Special cell YY

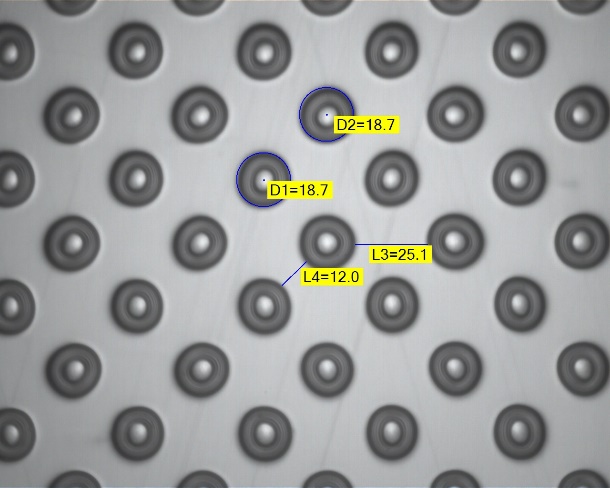

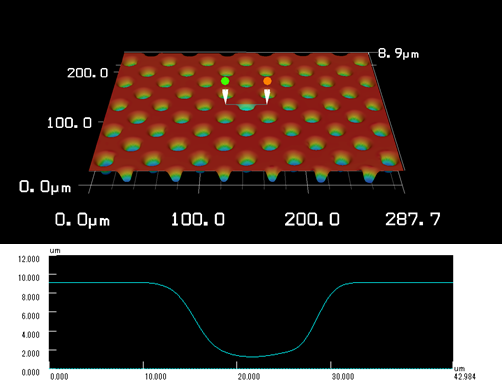

Dot φ18μ

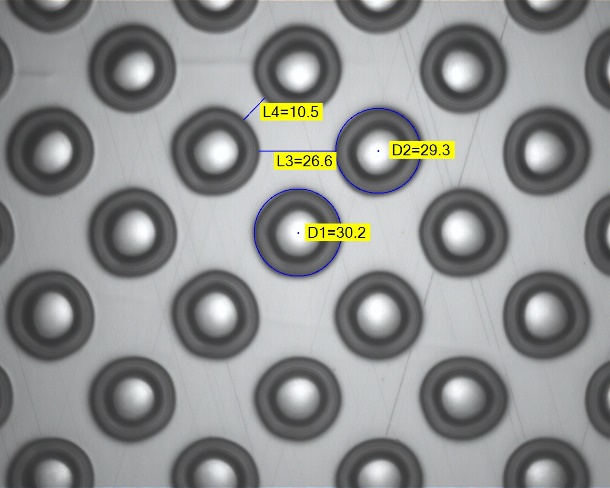

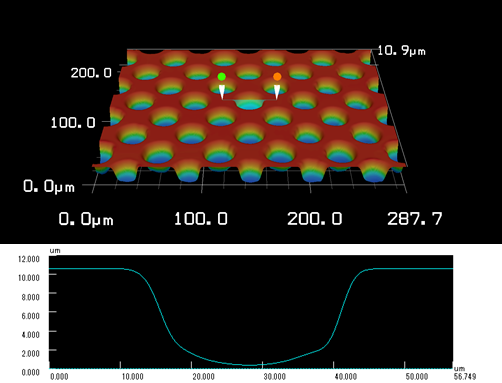

Dot φ30μ

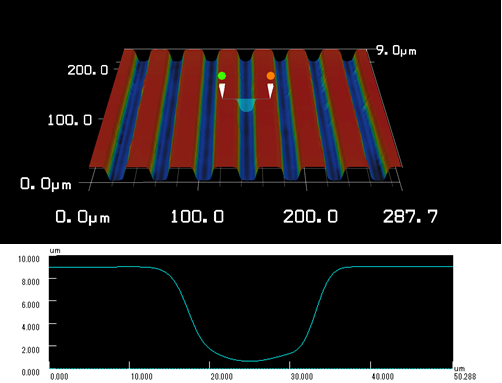

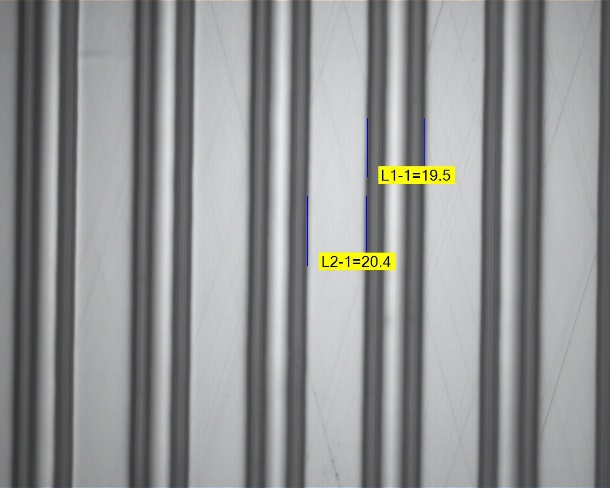

L/S = 20/20 vertical

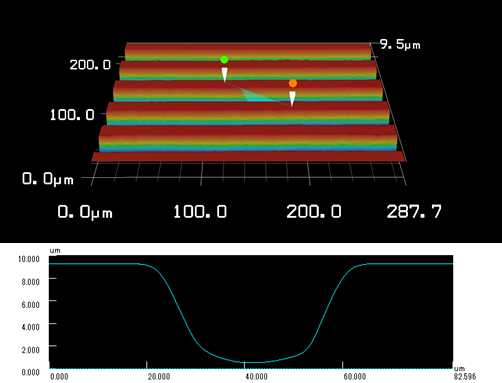

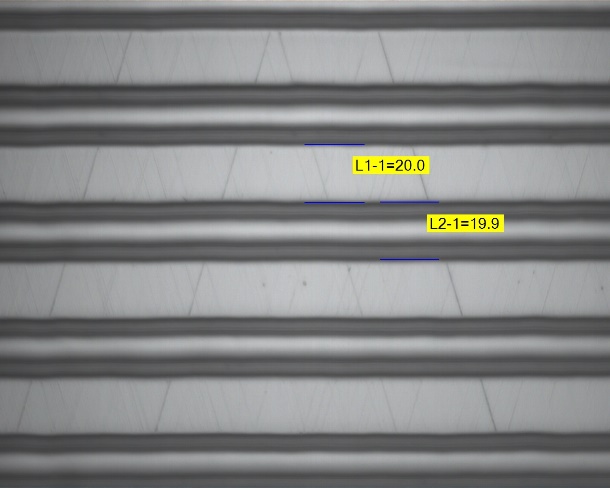

L/S = 20/20 horizontal

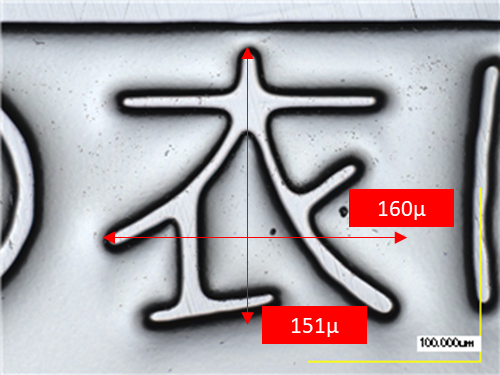

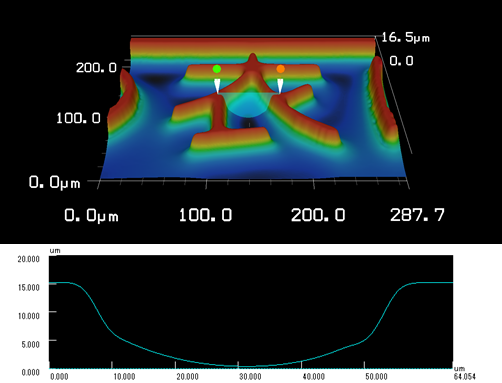

micro characters clothes

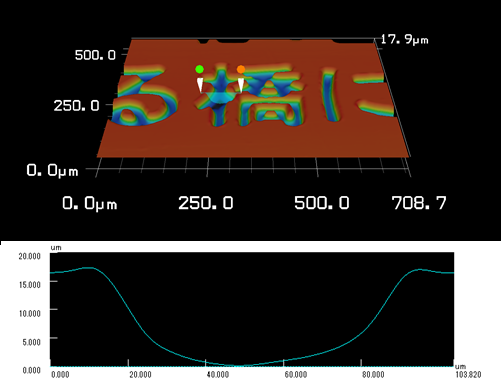

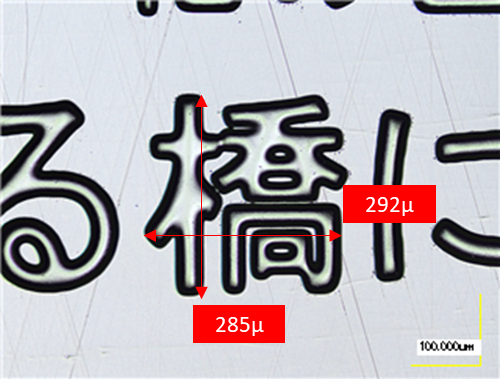

micro characters bridge
